Glass Reinforced Products B.V.
The solution becomes reality
Your reliable partner in pipe and pipe-joint protection. We supply products, provide support on site and — if required — take care of application and quality inspection.
- pipes protected for HDD
- 6″ – 48″
- with FiberTec® PPS
- 50+ HDDs
- of pipe protected
- 25+ km
- application, support and supervision
- On site
Markets
Where we protect pipes
Mechanical

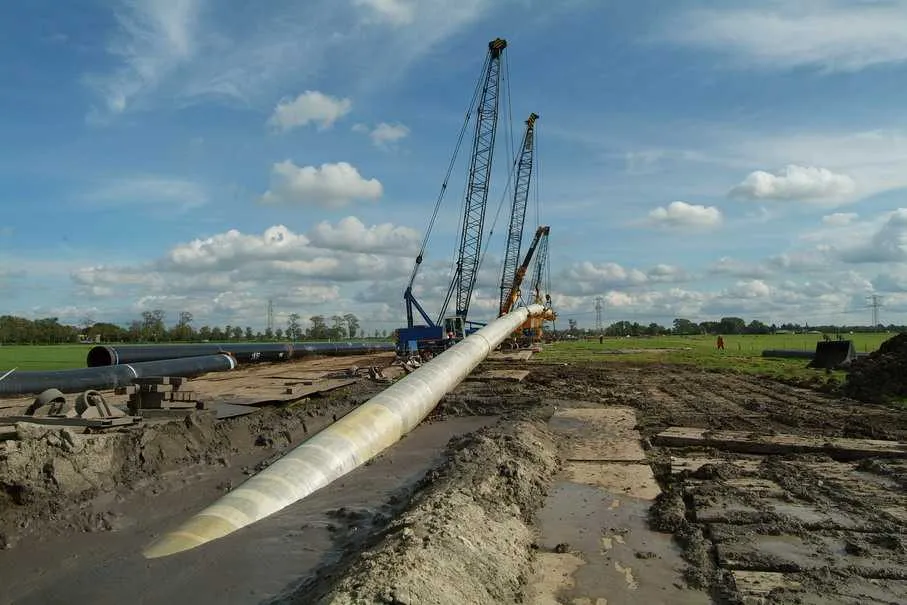

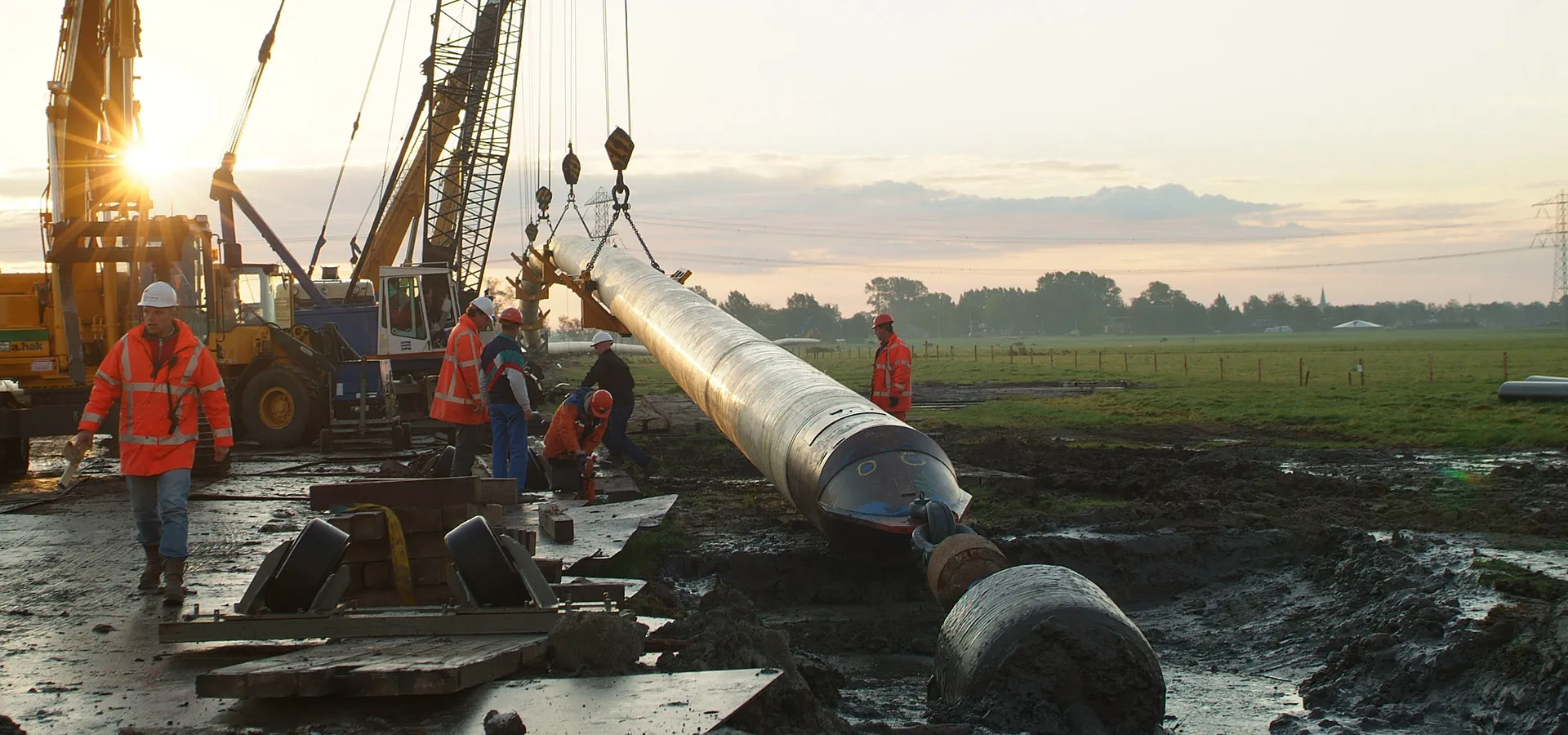

Horizontal directional drilling
A long-wearing shield of special coatings protects pipes from mechanical damage during pull-back. FiberRock® is a UV-curing laminate of resins, fibreglass and special fillers, proven in gravel, rock, clay and sand.
Corrosion
Corrosion protection
Special coatings with FiberRock® are a very effective and economical way to protect underground pipes and transmission systems in water. Glass-fibre reinforced coatings on underground oil and gas tanks have been effective for over 40 years.
Field joints
Shrink sleeves and field joint protection
FiberRock® and Canusa systems for special projects.
- Oil and gas platform protection, offshore and onshore
- District heating
- Land post protection
Products
Systems we supply and apply
UV-curing mat
FiberTec® PPS
A flexible, pre-preg polyester mat of resins, fibreglass and special fillers. After curing with UV light it gives high impact protection of the PE/PP coating during HDD. Easy to process on location: a cutting table, a knife and daylight or UV lamps are all it takes.
Machine-applied
FiberRock® PPS
A two-component glass-reinforced polyester system applied to the pipe by machine. Higher percentages of glass fibre and long-wearing filler, and a material thickness that is easily adapted — tailored to every single HDD, especially tough and long drillings in rock and gravel.
Field joint coating
Canusa-CPS
Heat-shrinkable sleeves, liquid epoxy coatings and adhesives for sealing and corrosion protection of pipeline joints, onshore and offshore. Together with Canusa-CPS we developed a special HDD protection kit: the TBK-65 XL.
- Oil and gas, water and waste-water pipelines
- Pre-insulated and offshore pipelines
- Directional drilling, repair and rehabilitation
Equipment

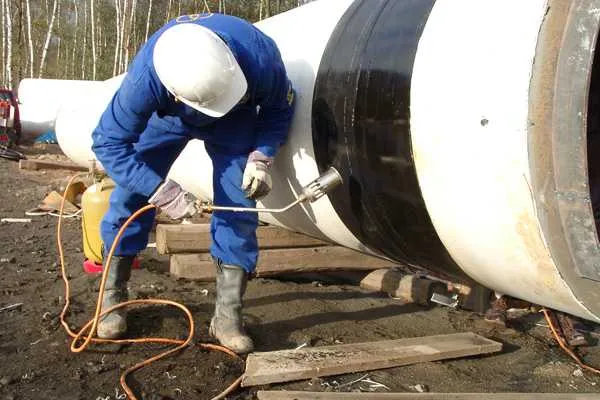

Induction heating
Clamp coils for heating pipe joints after welding and ring coils for pre-heating before welding — lightweight, rugged and built to the pipe diameter, coating thickness and joint length. Diesel-powered units for pipe pre-heating are also available.
Video
In the field
Field joint protection on a pipeline project.
About
More than supply: application, support and supervision
Glass Reinforced Products B.V. has years of global experience in the use and application of UV-curing glass-reinforced laminates — FiberTec® and FiberRock® — for the pipe protection industry.
We specialise in the mechanical protection of pipes for horizontal directional drilling and in the protection of pipe welding joints, for normal transport pipelines and for HDD in particular.
Clients know us for innovative ideas: a partner for individual solutions to their problems.
- Supply of FiberTec®, FiberRock® and Canusa products

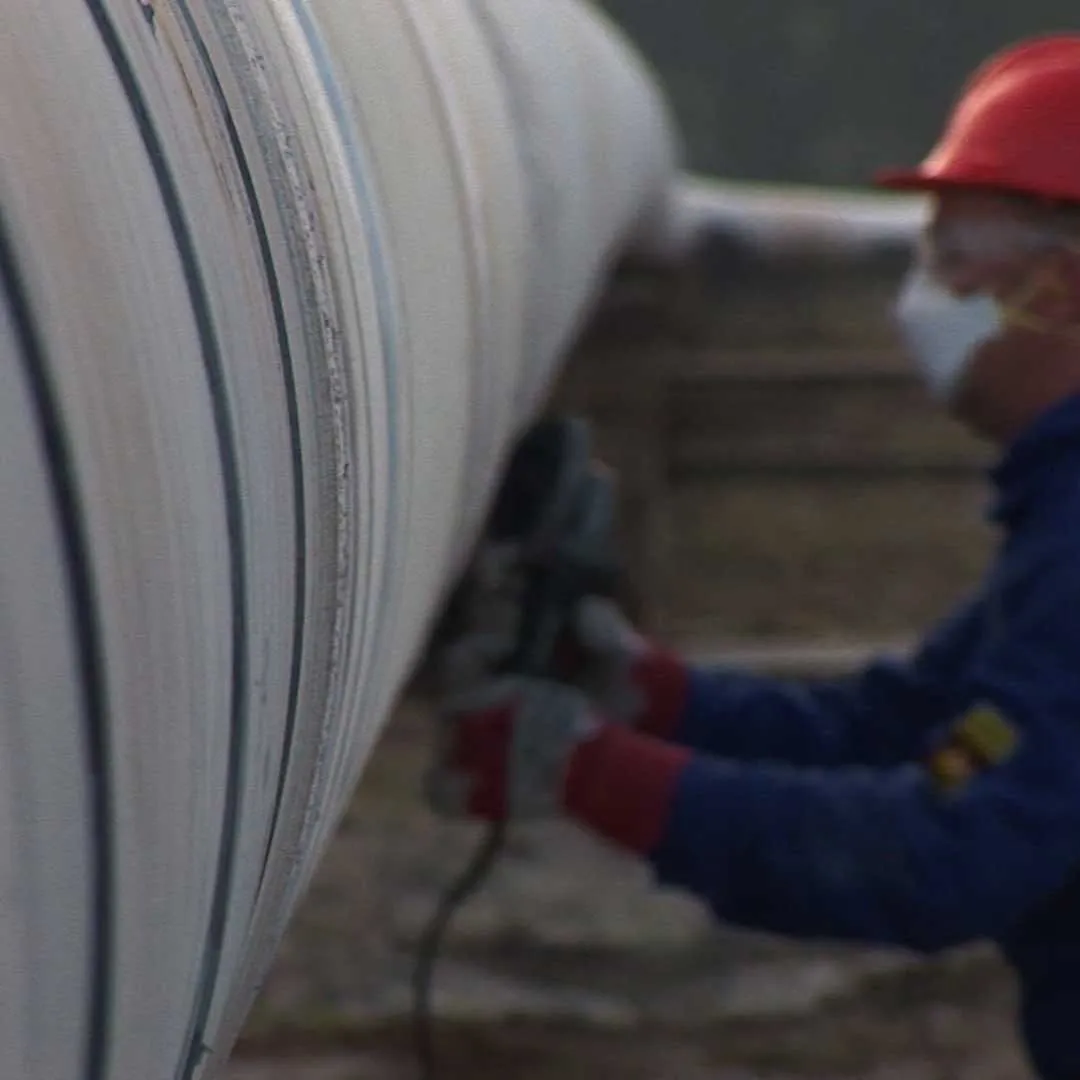

- Application by our own crews
- Support and supervision during projects

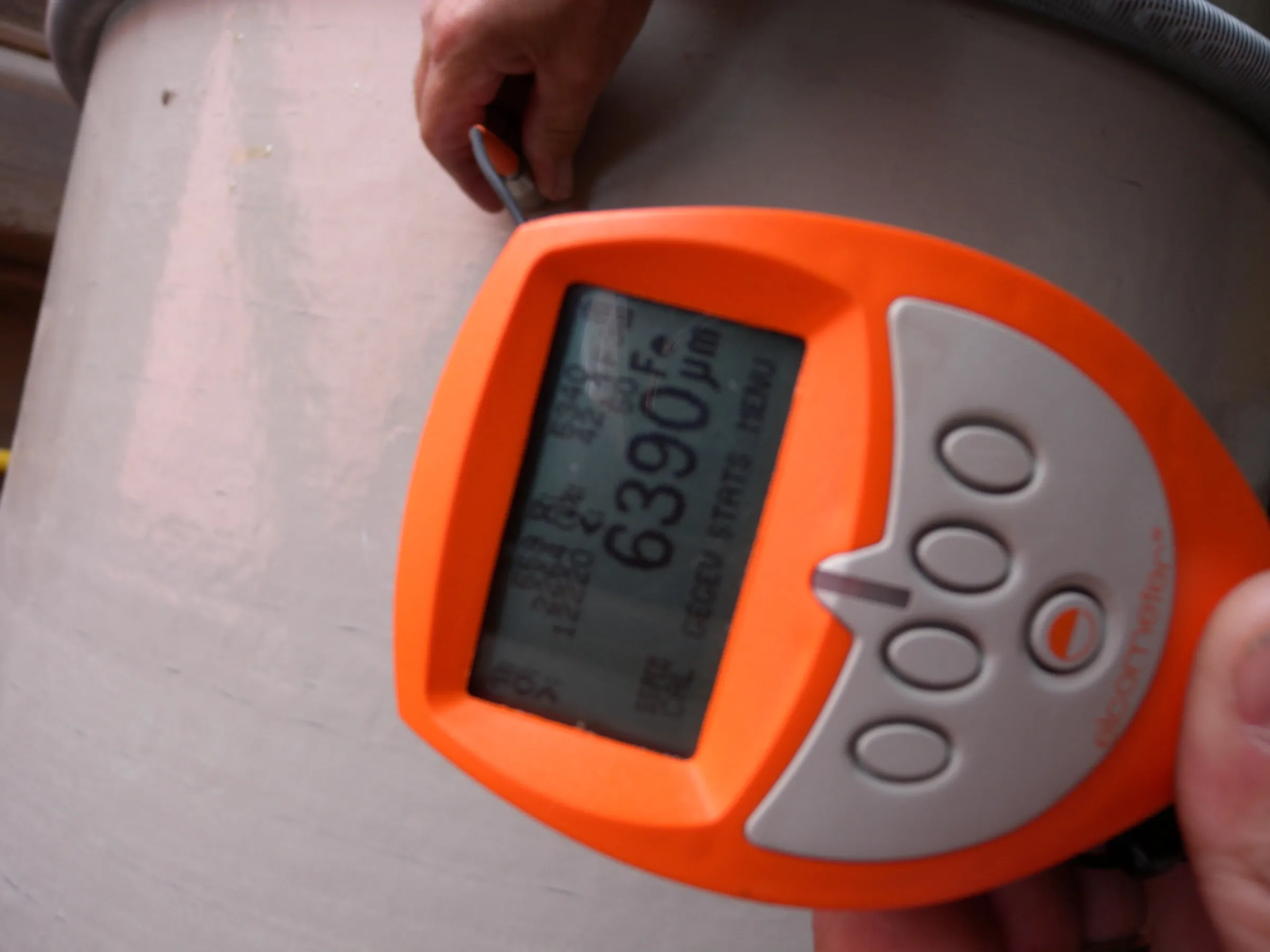

- Quality inspection
Cases
From problem to protected pipeline
- Client
- A leading gas company
- Location
- The Netherlands
- Demand
- High mechanical pipe protection to prevent coating damage from rocks and grit during horizontal directional drilling.
- Solution
- Field-applied FiberRock®, a UV-curing glass-reinforced laminate for high-quality reinforced pipe protection.
Additional cases on request.
Contact
Put your question to GRProducts
Products, a complete application or advice on a difficult crossing — tell us what you are facing and we will work out the solution with you.
- Postal address
- Glass Reinforced Products B.V.PO Box 2488440 AE HeerenveenThe Netherlands
- Phone
- +31 (0) 513 682 700
