Mill-applied GRP, FRP and GRE
Perfection in pipe protection
Blue Jetty is a mobile spray-winding unit that applies glass-reinforced composite layers to pipes for oil and gas transmission — effectively, efficiently, fast and with constant quality.
- pipe diameter
- Up to 56″
- pipe length
- 20 m
- pipe weight
- 20 tonnes
- cryogenic service temperature
- −165 °C
Applications
Insulate, protect for drilling, prevent corrosion
Diverse combinations of glass fibres, resins and special fillers determine — together with the layer thickness — the technical properties each project requires.
Insulation · LNG

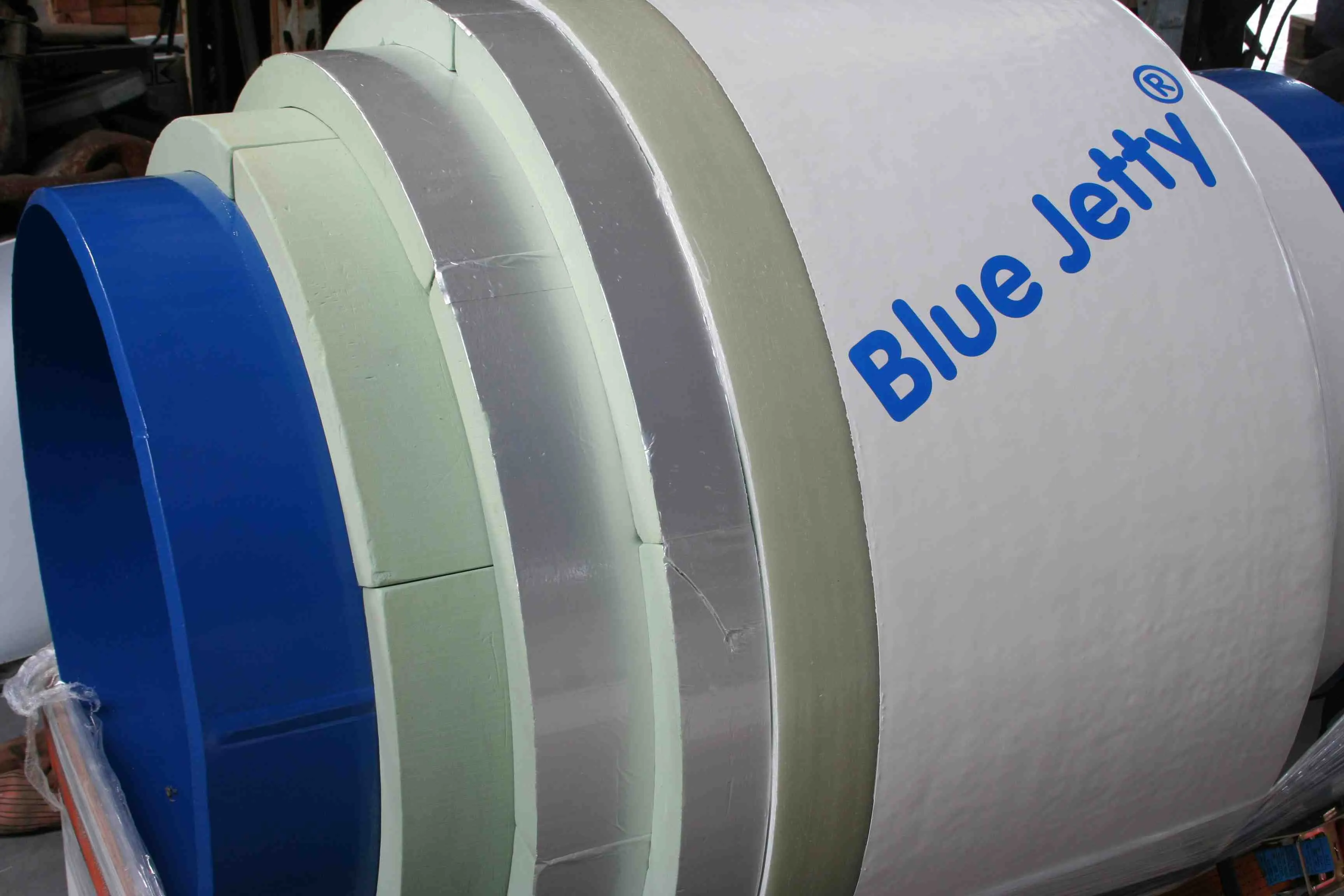

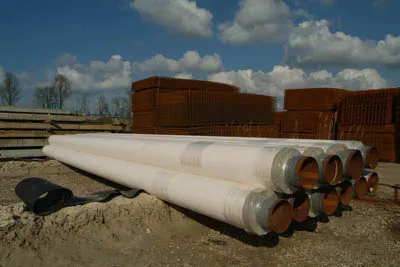

Cryogenic insulation for LNG lines
Insulating LNG transmission systems by hand takes a lot of time and is not always the most economical or reliable way. Blue Jetty offers a fast, efficient method for cryogenic insulation on jetty lines and pipes at LNG terminals.
- High fire retardancy and thermal performance
- Suitable for temperatures down to −165 °C (−265 °F)
Mechanical · HDD

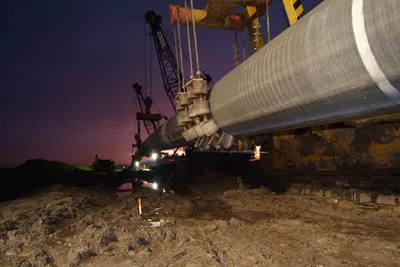

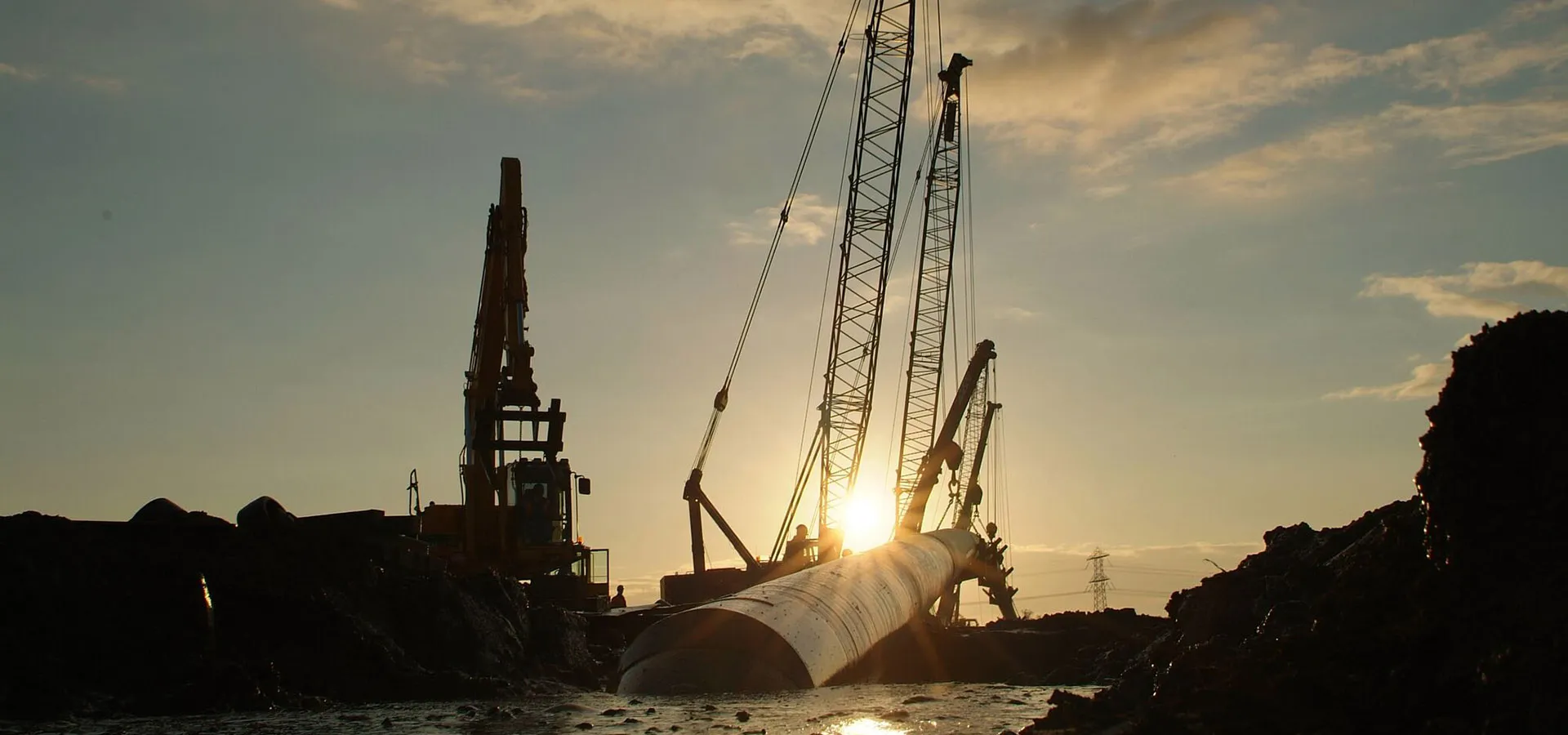

Shield for horizontal directional drilling
A long-wearing shield of special coatings protects pipes from mechanical damage while they are pulled in. Material thickness is easily adapted to the protection required.
- Experience with pipes from 6″ to 48″
- Gravel, rock, clay and sand
Corrosion · CP
Corrosion prevention
Cathodic protection is costly to install and must be monitored for as long as the pipe is in service. Special coatings applied with the Blue Jetty unit are an effective and economical alternative worth considering — underground and in water.
- Glass-fibre reinforced coatings on underground oil and gas tanks: effective for over 40 years
The unit
A spray-winding machine that comes to the pipes

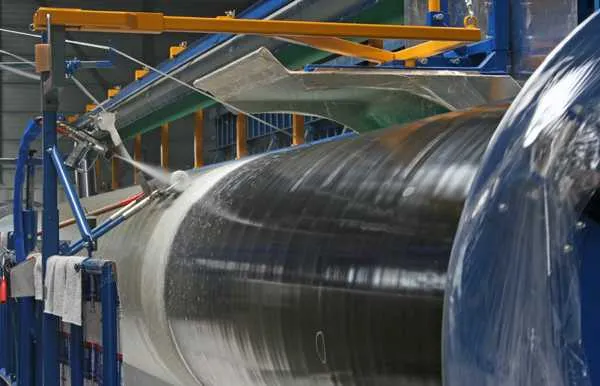

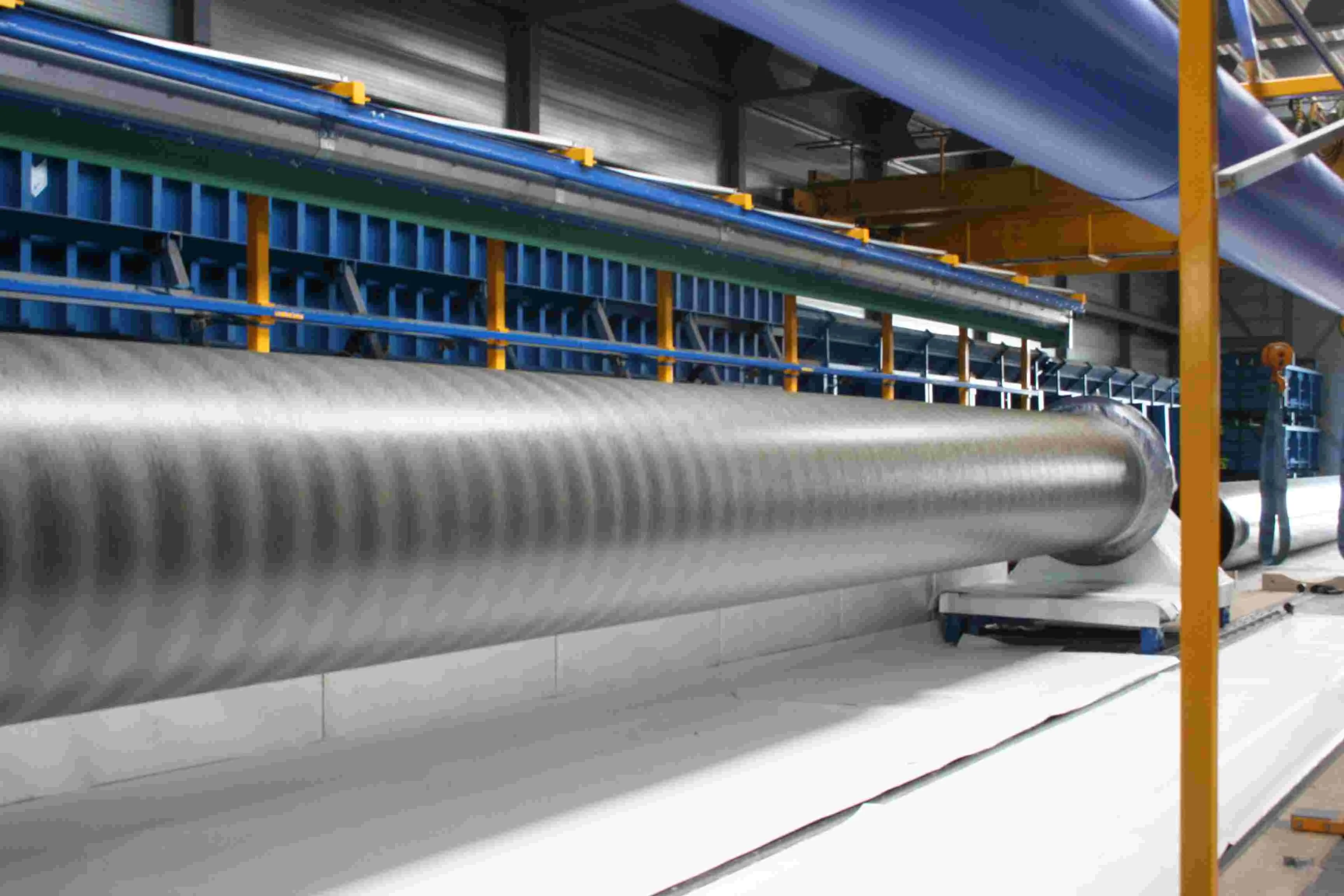

The spray-winding machine moves gradually alongside the rotating pipe and applies one or more layers of composite homogeneously on to the pipe. The composites vary: different glass fibres, specific resins and special fillers.

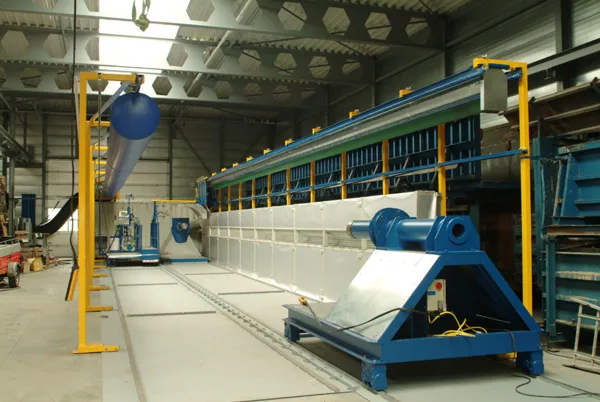

The unit is designed in parts, so it can be built up where it is needed. It travels by container and is installed at locations around the world, where skilled specialists operate the machine.
- Coating applied on location, tailored to each customer
- Transported by container, easily installed and dismounted
- Operated by our own specialists
Video
The unit at work
Three minutes in the production hall: insulation and laminate applied to pipes for an LNG project.
Quality
Constant quality, monitored during production
During the production process Blue Jetty monitors and maintains a constant quality. The latest machine technology gives a very accurate and consistent application — pipe after pipe, according to the specifications of the customer.
It is a proven protection system for effective, efficient, fast and economical solutions, even during tough and long drillings in soils with rock and gravel.
Cases
Proven in the field
- Client
- A leading gas company
- Location
- The Netherlands
- Demand
- High mechanical pipe protection to prevent coating damage from rocks and grit during horizontal directional drilling.
- Solution
- Factory-applied, high-quality glass-reinforced protection material.
- Client
- A world-leading chemical company
- Location
- Belgium
- Demand
- High-temperature, fire-retardant insulation systems using special PIR foam, up to 200 °C.
- Solution
- Prefabricated high-temperature PIR segments, protected with a fire-retardant glass-reinforced laminate applied on the Blue Jetty.
Additional cases on request.
Contact
Discuss your project with Blue Jetty
Tell us the pipe dimensions, the protection you need and where the pipes are. We will tell you whether the unit comes to you or the pipes come to us.
